【Core Parameters/Highlights】
Chassis： Changan Hunter New Energy Extended-Range Chassis China VIHydropower System： The maximum power of the range extender is 140KW，1500W Solar System
Size(mm)：6409×2265×2995
Layout Features: Rear entrance design, rear kitchen and bathroom, separate wet and dry bathroom areas, accommodates up to 6 people, uniquely designed layout
Outdoor Features: Outdoor induction cooktop,luggage compartment, ideal for outdoor activities

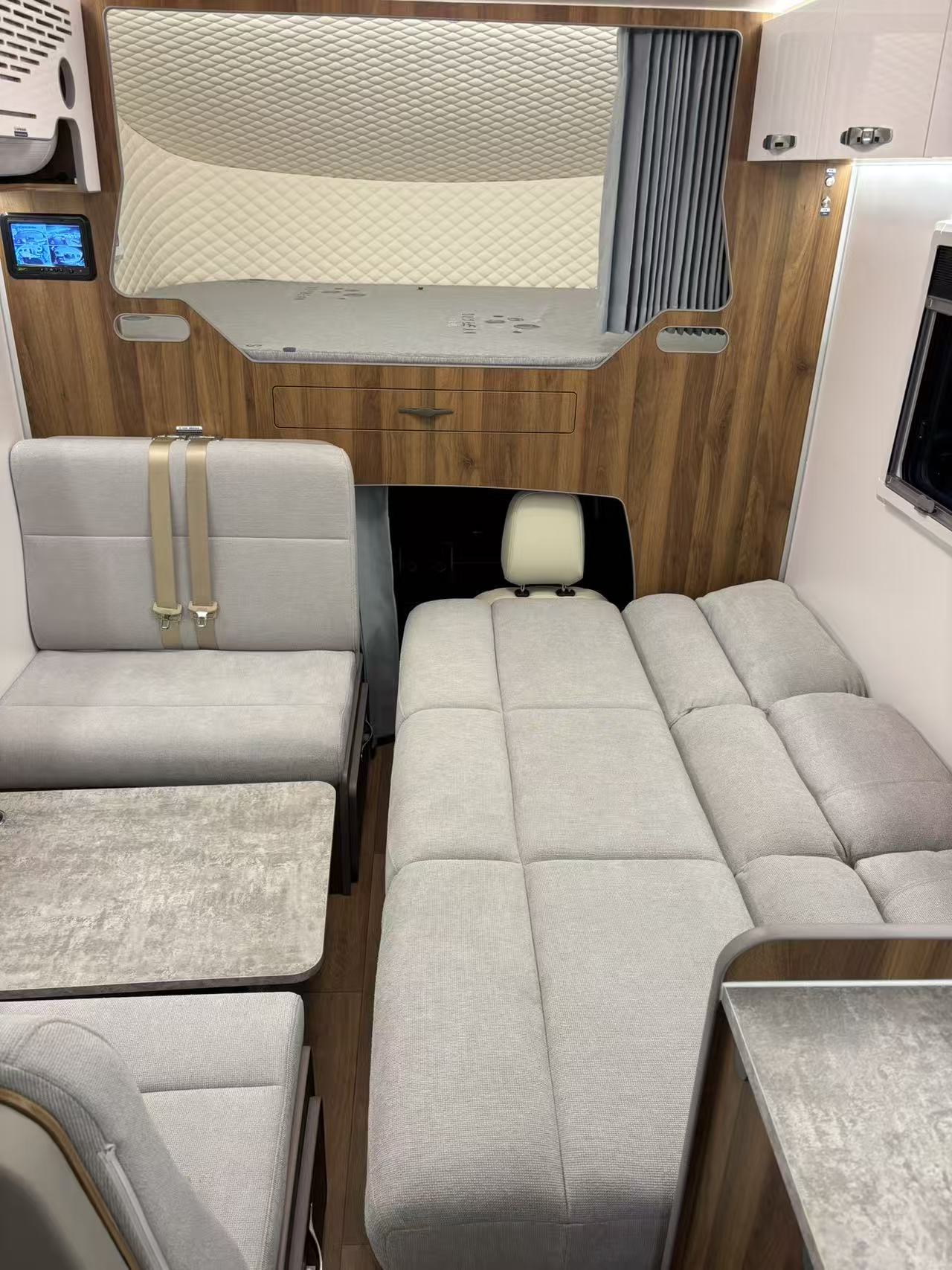

Flexible seating: Fold-down sofa for versatile space, booth seating
Vehicle configuration information
| Basic Parameters | Basic configuration | ||
| Changan Hunter New Energy Extended-Range Chassis China VI | Paint-Free Finish technology for Entire Yacht Hull | ||
| Total mass ( Kg)：3495 | Number of Authorized Members (persons)：6 | ||
| Dimensions/Length x Width x Height (mm)：6409×2265×2995 | Five-layer insulated body structure | ||
| E0-Grade Lightweight Eco-Friendly Panels for RV use | Thermal break for entire vehicle body | ||
| Welding and Hot-Dip Galvanizing of Manganese Steel Square Tubing for Subframe | Aluminum Square Tube Cage Frame | ||
| Chassis | |||
| Maximum power of dual motors (Ps/rpm) : 200KW/272 horsepower (70KW at the front and 130KW at the rear) | Engine: Blue Whale New Generation 2.0T | ||
| The maximum power of the range extender is 140KW | Transmission: Fixed gear ratio | ||
| Maximum torque (N.m/rpm) : 470N·M | Fuel type: 92# gasoline | ||
| Suspension form: Rear-reinforced six-leaf spring front double wishbone independent suspension | Fuel tank capacity (L) : 70 | ||
| Tire specification: LT265/65R17(All-Terrain) aluminum alloy wheel hub | Wheelbase (mm) : 3430 | ||
| ABS EBD ESC/ESP hill start assist hill descent control Brake assist lateral stability control | Track (mm) : 1610 for the front and 1710 for the rear | ||
| Electric power steering, electronic accelerator pedal | Drive form: Dual-motor four-wheel drive | ||
| 4 speakers 7.5-inch color LCD instrument panel 12.3-inch central control screen | Four-wheel disc brakes | ||
| LED automatic headlights (adjustable Angle) daytime running lights | Keyless entry, remote key via mobile phone | ||
| High-definition panoramic parking camera (540) driver and front passenger airbags | Automatic transmission with manual mode cruise control | ||
| Steering wheel adjustment (up and down adjustment） | Electrically adjustable rearview mirrors defrosting heating | ||
| GPS BeiDou online navigation car KTV | Remote interaction OTA upgrade | ||
| System Configuration | Waterway system | Circuits and safety systems | Appliance Configuration |
| 260L clean water tank | 31.18KW·H 12KW·H lithium iron phosphate battery | 120L RV-Specific Refrigerator | |
| 110L grey water tank | External Power Output: 6 kW | 20L Microwave-Convection Oven | |
| 100L black water tank | 1500W solar system | Outdoor Induction Cooktop | |
| Gravity pressure water inlet | 6KW high-frequency charging and reversing integrated machine | 1.5-HP Home Air Conditioner | |
| Environmentally friendly and antibacterial water pipe | Integrated Screen Control System | 40L Electric Water Heater | |
| Low-maintenance booster water pump | Automotive-grade finished wiring harnesses | Decorative Main Light Fixture | |
| Electric valve for sewage and drainage | Streaming Rearview Mirror (with Dashcam) | Electric Flushing Toilet | |
| Waterway Retaining Ring | Rearview Panoramic Camera | ||
| Food-grade rotational molding process mold water tank | CO Smoke Detector | ||
| Dry Powder Fire Extinguisher | |||
| Upper Assembly Configuration |
Body configuration | Interior configuration | Kitchen and bathroom configuration |
| The entire vehicle body achieves thermal break bridge | Double bed (forehead) 2050X1300mm | Dry-Wet Separated Bathroom | |
| Five-layer insulated body structure | Fold-out sofa | Shower Enclosure Anti-Slip Waterproof Moisture-Resistant Base Tray | |
| High-strength aluminum square tube cage frame | Rear transverse bed decorative reading lamp | Bathroom Anti-Slip Waterproof Moisture-Resistant Base Tray | |
| Welding and hot-dip galvanizing of manganese steel square tubes for subframe anti-corrosion | Double-seater booth seating | Bathroom Ventilation Fan (Side-Exhaust) | |
| Insulation process forehead (top integral mold） | Power-adjustable driver and passenger seats (microfiber leather) | Shower Enclosure Ventilation Fan (Side-Exhaust) | |
| Electric Sunshade (with LED Strip Lighting) | Premium RV-grade floor mats | Lighted Vanity Mirror | |
| Dual-Stage Electric Pedal (Anti-Collision) | Hardware fittings | Home Showerhead | |
| Outdoor Shower Head | Storage compartment lighting | Triangular Shelving Unit | |
| Three-Point Trailer Hitch | Universal international power outlets | Towel Rack | |
| Full-size spare tire spare tire cover | Combination storage cabinets | Vacuum-Formed Molded Sink | |
| Hydraulic shock absorbers | Large wardrobe | Wear-Resistant Kitchen Countertop | |
| Side doors | Customized Kitchen Sink | ||
| Side luggage compartments | Stand-Alone Faucet | ||
| Window/Door | |||
| Double-layer acrylic window | |||
| European-style RV special Door | |||
