【Core Parameters/Highlights】

Chassis： Changan Hunter New Energy Extended-Range Chassis China VI
Power System：The maximum power of the range extender is 140KW，1500W Solar System
Size(mm)：6409×2265×2995

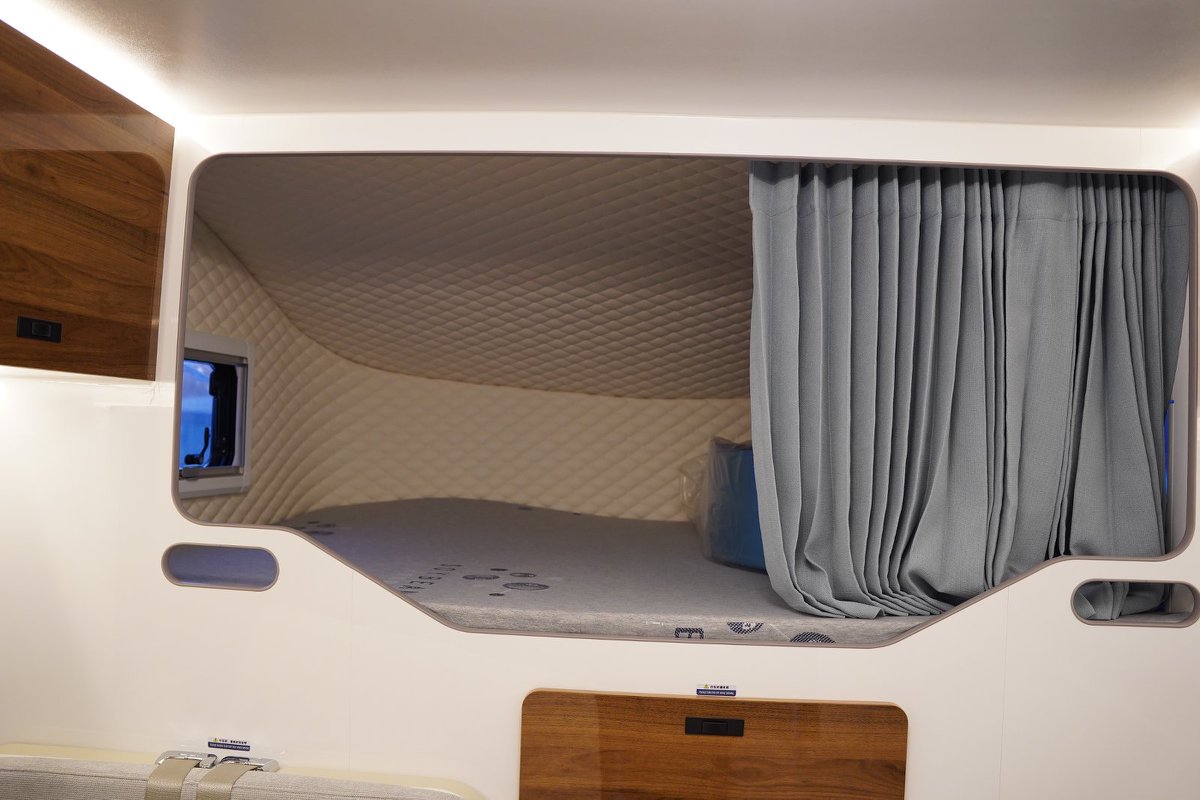

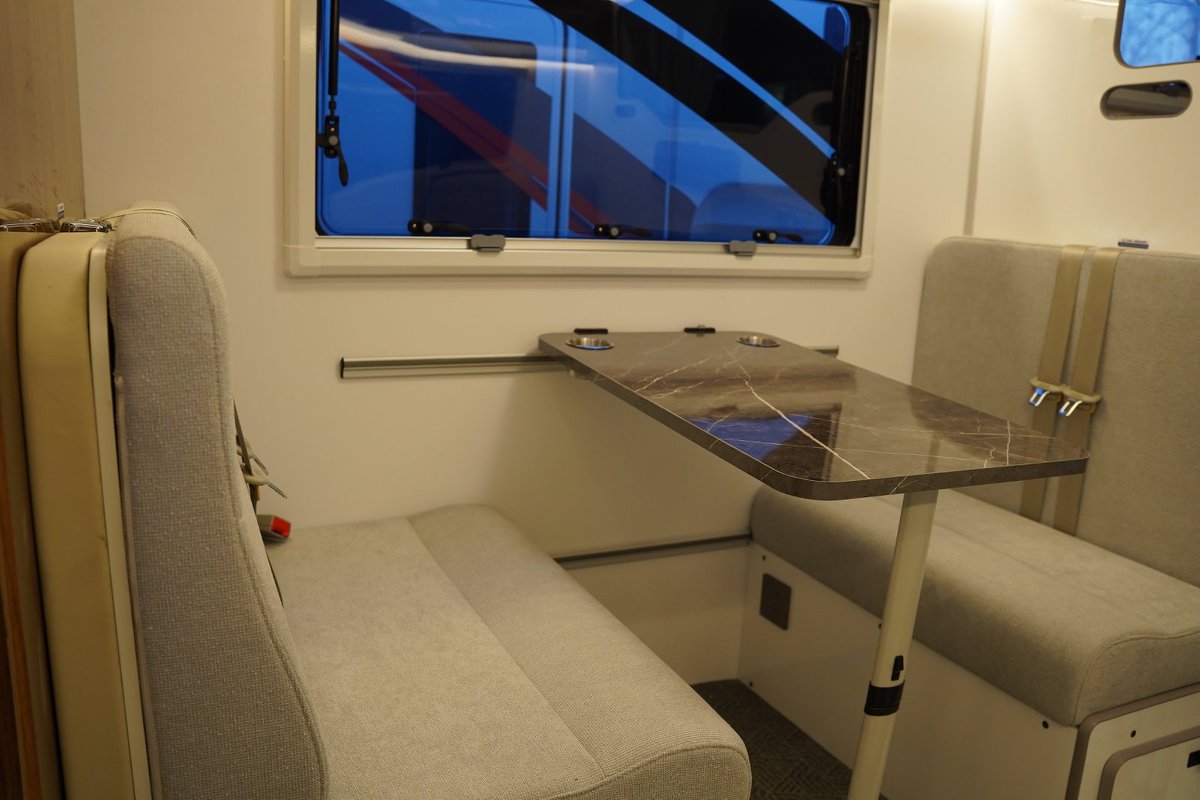

Layout Features: Center-door design, facing booth seating arrangement, rear transverse bed, accommodates up to 6 passengers
Kitchen Convenience: Built-in induction cooktop, custom vegetable sink, integrated kitchen functionality
Ideal for: Family outings or small group trips requiring seating for multiple passengers and social space

Vehicle configuration information

Basic Parameters	Basic configuration
	Changan Hunter New Energy Extended-Range Chassis China VI		Paint-Free Finish technology for Entire Yacht Hull
	Total mass  ( Kg)：3495		Number of Authorized Members (persons)：6
	Dimensions/Length x Width x Height  (mm)：6409×2265×2995		Five-layer insulated body structure
	E0-Grade Lightweight Eco-Friendly Panels for RV use		Thermal break for entire vehicle body
	Welding and Hot-Dip Galvanizing of Manganese Steel Square Tubing for Subframe		Aluminum Square Tube Cage Frame
	Chassis
	Maximum power of dual motors (Ps/rpm) : 200KW/272 horsepower (70KW at the front and 130KW at the rear)		Engine: Blue Whale New Generation 2.0T
	The maximum power of the range extender is 140KW		Transmission: Fixed gear ratio
	Maximum torque (N.m/rpm) : 470N·M		Fuel type: 92# gasoline
	Suspension form: Rear-reinforced six-leaf spring front double wishbone independent suspension		Fuel tank capacity (L) : 70
	Tire specification: LT265/65R17(All-Terrain) aluminum alloy wheel hub		Wheelbase (mm) : 3430
	ABS EBD ESC/ESP hill start assist hill descent control Brake assist lateral stability control		Track (mm) : 1610 for the front and 1710 for the rear
	Electric power steering, electronic accelerator pedal		Drive form: Dual-motor four-wheel drive
	4 speakers 7.5-inch color LCD instrument panel 12.3-inch central control screen		Four-wheel disc brakes
	LED automatic headlights (adjustable Angle) daytime running lights		Keyless entry, remote key via mobile phone
	High-definition panoramic parking camera (540) driver and front passenger airbags		Automatic transmission with manual mode cruise control
	Steering wheel adjustment (up and down adjustment）		Electrically adjustable rearview mirrors defrosting heating
	GPS BeiDou online navigation car KTV		Remote interaction OTA upgrade
System Configuration	Waterway system	Circuits and safety systems	Appliance Configuration
	260L clean water tank	31.18KW·H 12KW·H lithium iron phosphate battery	150L RV-Specific Refrigerator
	110L grey water tank	External Power Output: 6 kW	20L Microwave-Convection Oven
	100L black water tank	1500W solar system	Built-in Induction Cooktop
	Gravity pressure water inlet	6KW high-frequency charging and reversing integrated machine	1.5 HP Home Air Conditioner
	Environmentally friendly and antibacterial water pipe	Integrated Screen Control System	40L Electric Water Heater
	Low-maintenance booster water pump	Automotive-grade finished wiring harnesses	Decorative Main Light Fixture
	Electric valve for sewage and drainage	Streaming Rearview Mirror (with Dashcam)	Electric Macerator Toilet
	Waterway Retaining Ring	Rearview Panoramic Camera
	Food-grade rotational molding process mold water tank	CO Smoke Detector
		Dry Powder Fire Extinguisher
Upper Assembly Configuration	Body configuration	Interior configuration	Kitchen and bathroom configuration
	The entire vehicle body achieves thermal break bridge	Double bed (forehead) 2050X1300mm	Bathroom Anti-Slip Waterproof Moisture-Resistant Base Tray
	Five-layer insulated body structure	Double bed (rear) 2050X1100mm	Lighted Vanity Mirror
	High-strength aluminum square tube cage frame	Rear transverse bed decorative reading lamp	Home Showerhead
	Welding and hot-dip galvanizing of manganese steel square tubes for subframe anti-corrosion	Double-seater bench	Triangular Shelf
	Insulation process forehead (top integral mold）	Power-adjustable driver and passenger seats (microfiber leather)	Towel Rack
	Electric Sunshade (with LED Strip Lighting)	Premium RV-specific floor mats	Vacuum-Formed Molded Sink
	Dual-Stage Electric Pedal (Anti-Collision)	Hardware fittings	Wear-Resistant Kitchen Countertop
	Outdoor Shower Head	Storage compartment lighting	Customized Vegetable Washing Sink
	Three-Point Trailer Hitch	Universal international power outlet	Separate Faucet
	Full-Size Spare Tire Spare Tire Cover	Combination storage cabinet	Bathroom Ventilation Fan (Side-Exhaust)
	Manual Parking Support Legs	Large wardrobe
	Hydraulic Shock Absorbers
	Rear Storage Compartment Door
	Full-Length Luggage Compartment
	Window/Door
	Double-layer acrylic window
	European-style RV special Door
